A broader view
The revised optical design increases the field of view and makes eye positioning more forgiving, helping the shooter acquire a comfortable sight picture faster.
Technical Data
Product Information
| Item information | Value |
|---|---|
| HAN: | 50100 |
| Category: | OPTICS |
Product Description
Riflescope · second focal plane
Element Optics HELIX Gen 2 6-24x50 SFP
6–24× riflescope with 50 mm objective, tool-free turrets, zero stop and side parallax adjustment.
APR-1C MRAD
APR-1C MOA
6–24×Magnification
50 mmObjective
30 mmTube
830 gWeight
This configuration
Available with APR-1C MRAD or APR-1C MOA; only the selected configuration is supplied.
What Gen 2 improves
Developed for a broader view and easier operation
Revised turrets
The tool-free resettable turrets provide a defined click feel and a lower profile. 8 MRAD or 20 MOA per revolution, depending on the selected configuration.
Protected windage control
The windage turret is capped. When the cap is removed, the supplied ring protects the exposed thread.
Finer adjustment
A larger parallax knob supports controlled corrections. The dioptre range has been extended to +3 to −2.5.
Features in practical use
Zero stop
After an elevation correction, the defined zero point can be found reliably again.
Second focal plane
The reticle remains visually fine and uncluttered throughout the magnification range.
Side parallax from 10 m
The side control enables precise focusing and parallax correction from 10 m.
30 mm tube
The 30 mm tube fits a broad selection of correctly sized rings and mounts.
Fully multi-coated lenses
Full multi-coating supports a clear image with strong contrast.
Rugged construction
The aluminium body is waterproof, fogproof, shockproof and nitrogen purged.

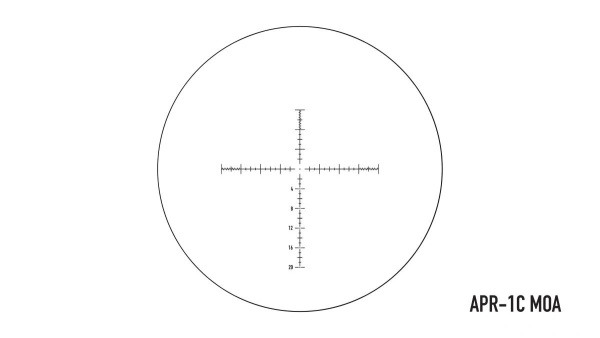

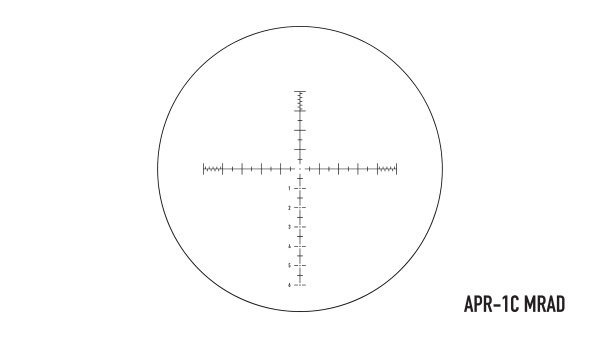

Available reticles
Two clearly separated configurations
The scope is available with either APR-1C MRAD or APR-1C MOA. Only the selected configuration is supplied.
Included items
- Riflescope in the selected reticle configuration
- Removable magnification throw lever
- Replacement hex screw
- Sunshade thread with protector ring
Matching items
Suitable 30 mm rings or mounts; height and rail system must be selected separately. A mount is not included.
Documentation, care and warranty
Read the manual in full before mounting and use. Current Element Optics warranty terms apply.
The German edition was translated by AI and is marked as a Holsterwelt edition on every page. If in doubt, refer to the English original.* Firearms, mounts and other accessories shown are not included unless expressly listed. The selected article variant and described scope of delivery apply.
